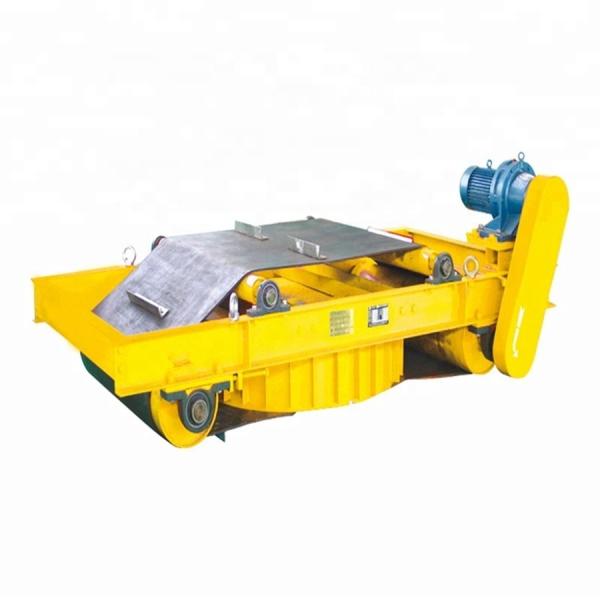

220V/380V Self Cleaning Conveyor Belt Overband Electromagnetic Separator Dry Iron Remover

Name: 220V380V Self Cleaning Conveyor Belt Overband Electromagnetic Separator Dry Iron Remover
Brand: GUOTE
Price: 10 USD

Wholesale 220V/380V Self Cleaning Conveyor Belt Overband Electromagnetic Separator Dry Iron Remover from china suppliers

Applicable Industries : Energy & Mining

Showroom Location : None

Condition : New

Type : Magnetic Separator

Production Capacity : 98%

Place of Origin : Shandong, China

Brand Name : GUOTE

Voltage : 220V/380V

Dimension(L*W*H) : Diffrent Model

Weight : 950 KG

Warranty : 12 Months

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor

Key Selling Points : Automatic

After-sales Service Provided : Engineers available to service machinery overseas

Type of cooling : Self-cooled

Belt Width : 500mm-1800mm

Required Hanging Height : 150mm-500mm

Material Thickness : 100mm-450mm

Excitation Power : 1kw-12.5kw

Power of fan : 1.5kw-7.5kw

Belt speed : 4.5m/s

Packaging Details : with specialized package that conformed to international freight transfer.

Port : Qingdao/Shanghai/Dalian

Supply Ability : 50 Set/Sets per Month iron separator

Price : $10,000.00/sets 1-1 sets

MOQ : 1 set

Contact Now

RCDD series Dry Type Self-discharging Electromagnetic Iron Separator

220V/380V Self Cleaning Conveyor Belt Overband Electromagnetic Separator Dry Iron Remover

Products Description

RCDD series dry type self-discharging electromagnetic separator is a kind of iron removal device to automatically remove tramp iron in powdery or lump non-magnetic materials.
The RCDD series electromagnetic separator mainly Used for removing iron from any material on the conveyor belt before the crushing mill and it can also be used for any bad environment.

Product Paramenters

Installation Instructions

Typically, suspended iron magnets are installed over the conveyor head pulley or across the conveyor belt. To achieve the full potential of suspended tramp metal magnets, we recommend installation over the head pulley since the burden “opens up” as it’s discharged and in flight. In this position, magnetic separation of the tramp iron is also assisted by the momentum of the tramp iron as the burden carrying it is moving towards the face of the magnet.

Successful Project

Product Features:

1. Inside of the separator adopt with appropriative electrician resign pouring .
2. Self-cooled totally-enclosed structure.
3. It has the advantages of large penetration depth , strong suction , dustproof , rainproof and corrosion resistance.
4. It can still run reliably in extremely bad environment.
